BETAFPV SuperD ELRS

BETAFPV SuperD ELRS is the first True Diversity Receiver that applies two antennas, dual receiver chains, and TCXO (temperature compensated crystal oscillator) tech, achieving an incredibly accurate frequency rate and excellent performance in extreme temperature environments. The The 915Mhz radio system exhibits greater diffraction ability due to its lower frequency which greatly fulfills the requirements and reliability for long-range flying, aerial photography, or FPV freestyle. The 2.4Ghz is well known for it's great range and extremely low latency levels.

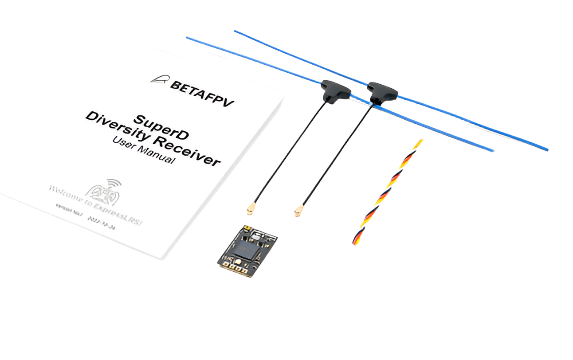

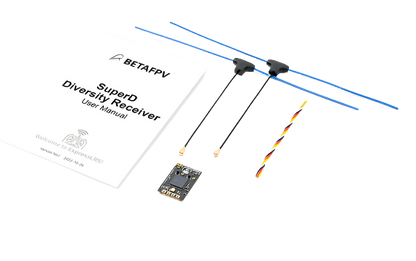

Package

• 1* SuperD 2.4GHz / 915Mhz Diversity Receiver

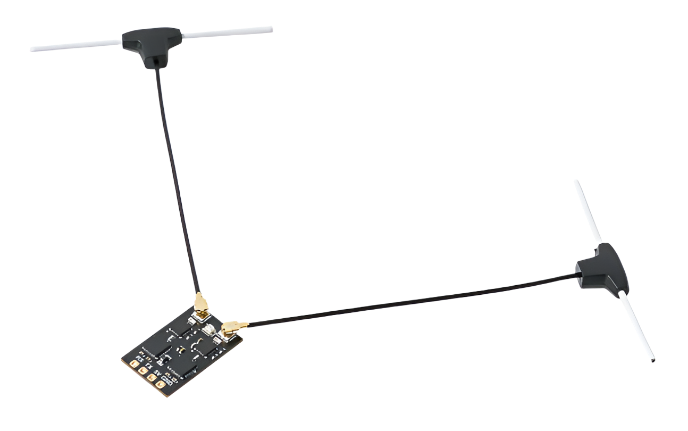

• 2* 2.4GHz / 915Mhz T Antenna
• 1* 4-Pin Header
• 1* 4-Pin Wire Harness
• 1* Instruction Manual
• 2* Heat Shrink Tubing

Specification

• Item: BETAFPV SuperD ELRS 2.4GHz/915Mhz Diversity Receiver

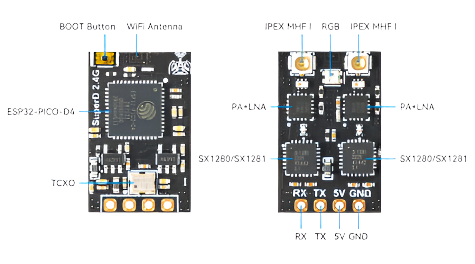

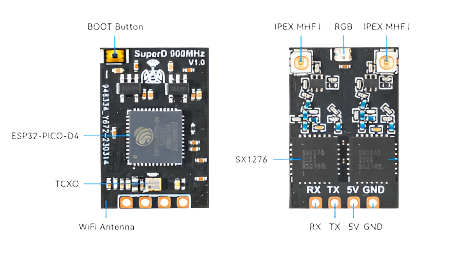

• MCU: ESP32 PICO D4, dual SX1280 (2.4GHz) / dual SX1276 (915Mhz)
• Telemetry power: 20dBm (2.4GHz)  / 17dbm (915Mhz)

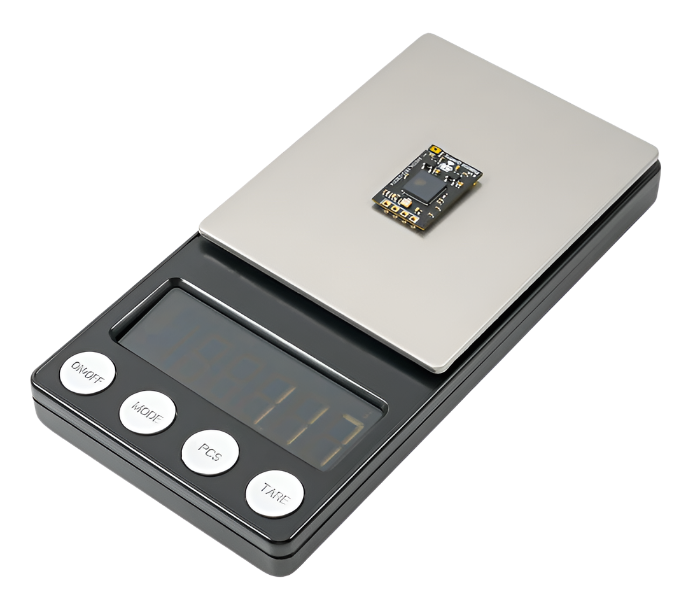

• Weight excluding antenna: 1.1g (2.4GHz) 1.2g (915Mhz)
• RF Frequency: 2.4GHz (ISM), 915MHz FCC

• Antenna connector: IPEX MHF 1/U.FL
• Input voltage: +5V DC @ “+” pad
• Receiver protocol: CRSF
• PCB size: 22mm x 14mm
