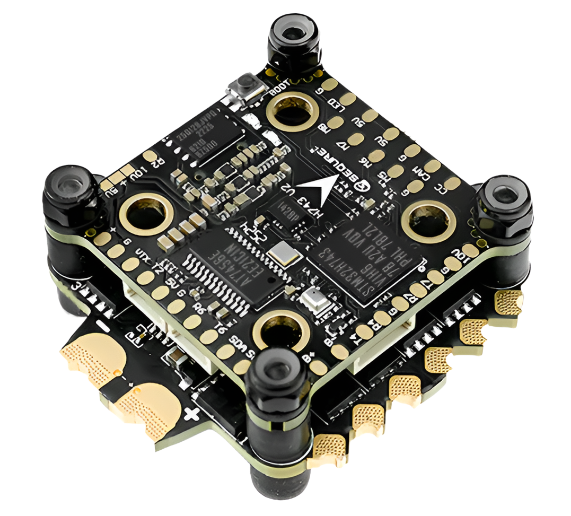

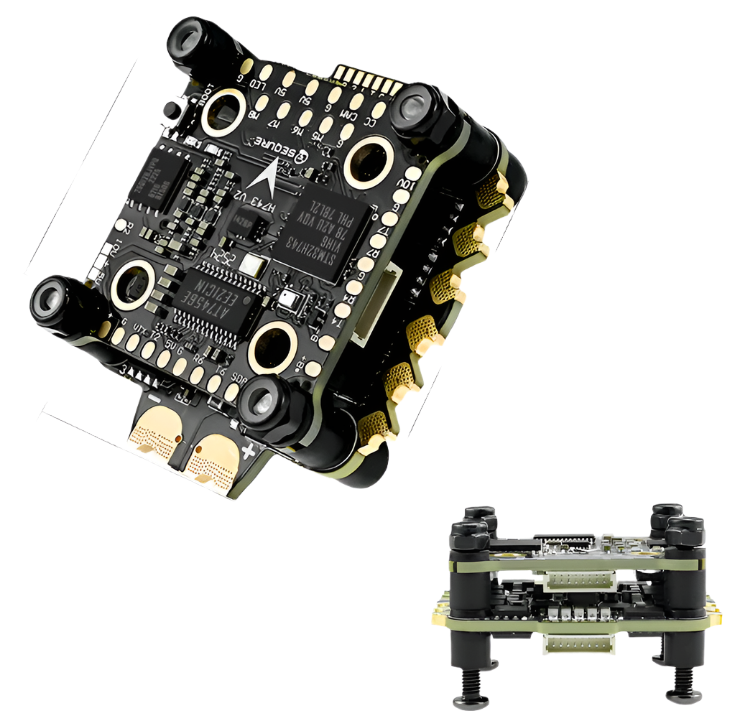

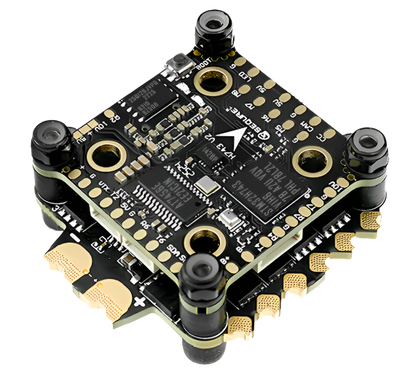

SEQURE H743 V2 & E70 G2 Stack

SEQURE H743 V2 & E70 G2 Stack FC ICM42688P 70A 128K ESC 4-8S Racing / Freestyle FPV Drone

Key Features:

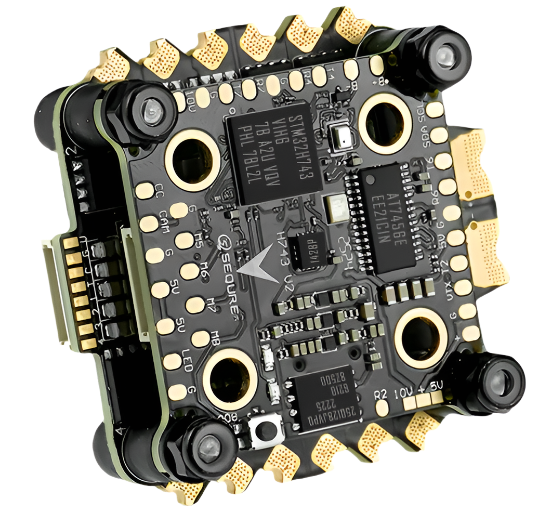

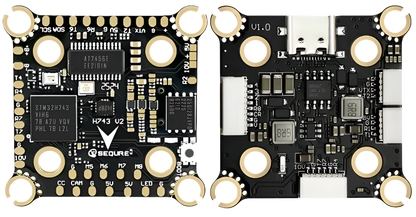

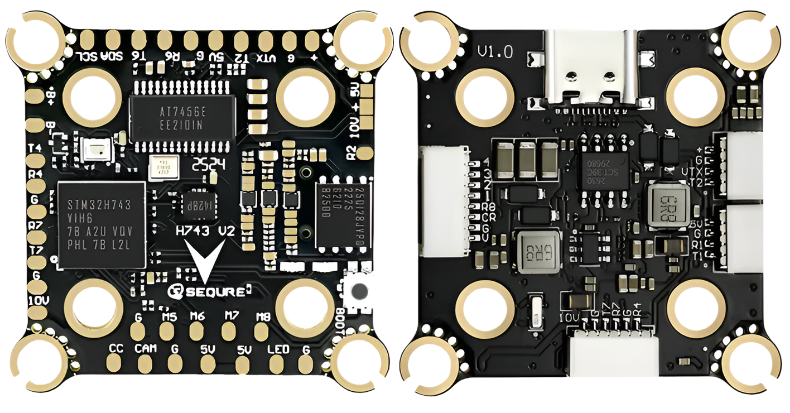

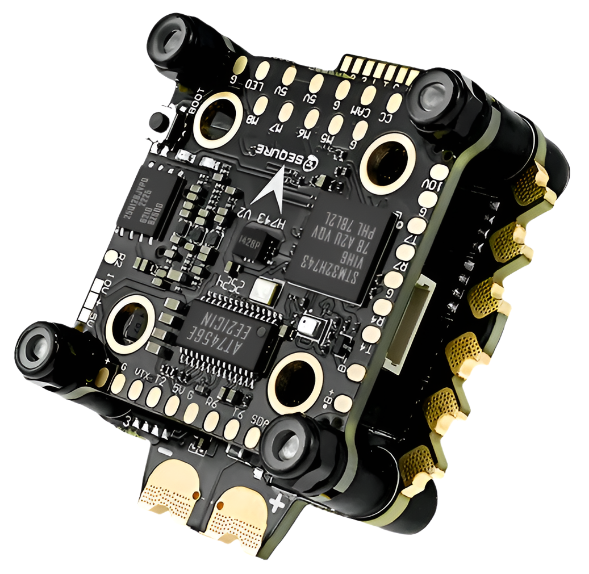

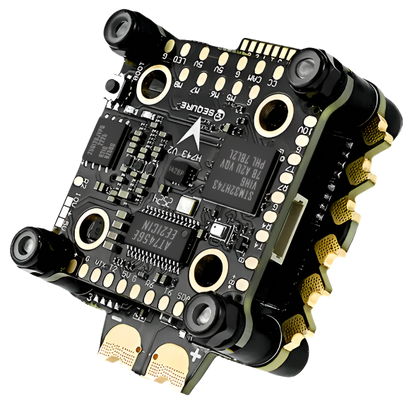

SEQURE H743 V2 FC:

• Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
• Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
• SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
• Reserve 6 UARTS to meet the needs of most devices.
  It can control up to 8 motors, easily constructing X8.
• Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.
• Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

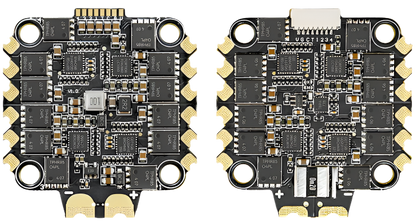

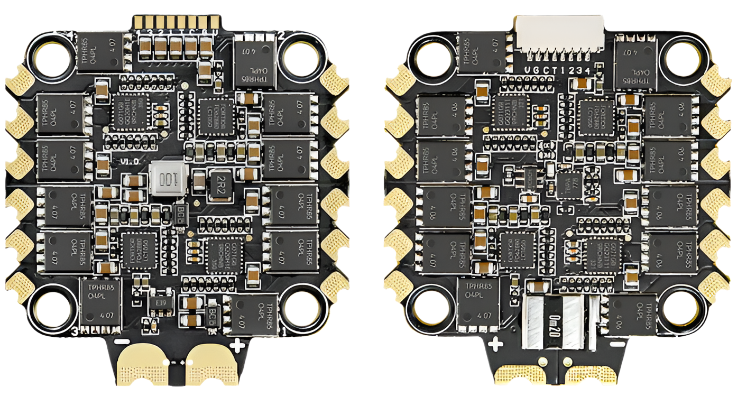

E70 G2 4in1:

•  STM32G071 high-performance processor, support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
  Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
•  High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
• High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
• Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
• PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
• Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
• 30.5*30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

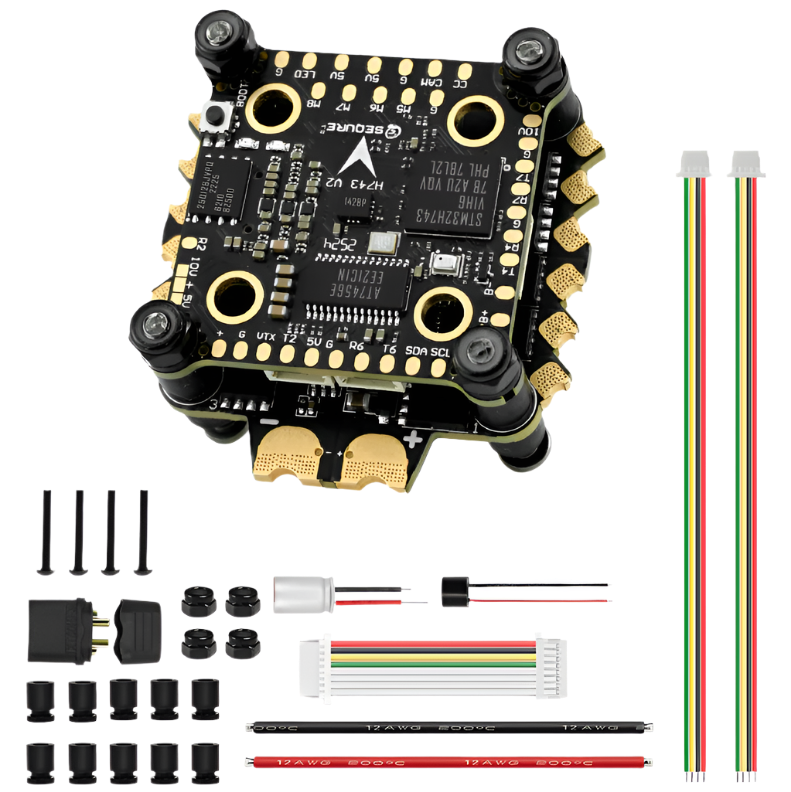

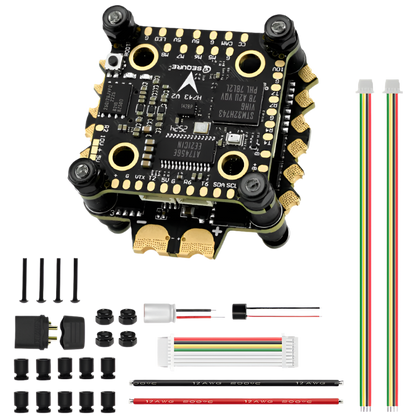

Included in Package:

SEQURE H743 V2 FC x 1
E70 G2 4IN1 ESC×1

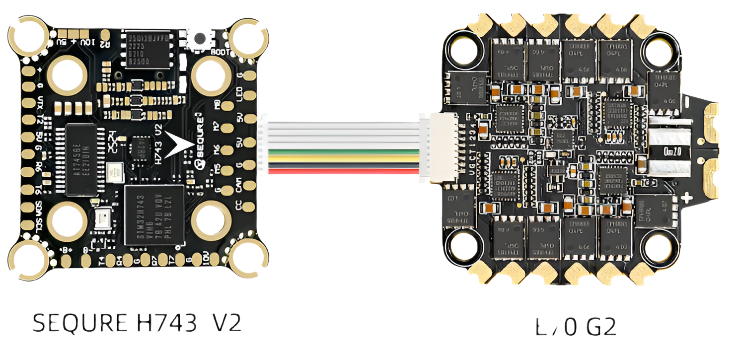

30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
30AWG 100mm Single-head SH1.0-4P Flat Cable x 2
60mm Length 12095 5V Buzzer x 1
M3*8mm Silicone Shock-absorbing Washer(Black) x 10
12AWG 100mm Power Cable (black/red)×2
XT60H-M Black Male Connector×1
35V 680UF Solid Capacitor×1
M3*25mm Screw×4
M3 Sleeve Nut×4
