Skystars F722 HD PRO 4

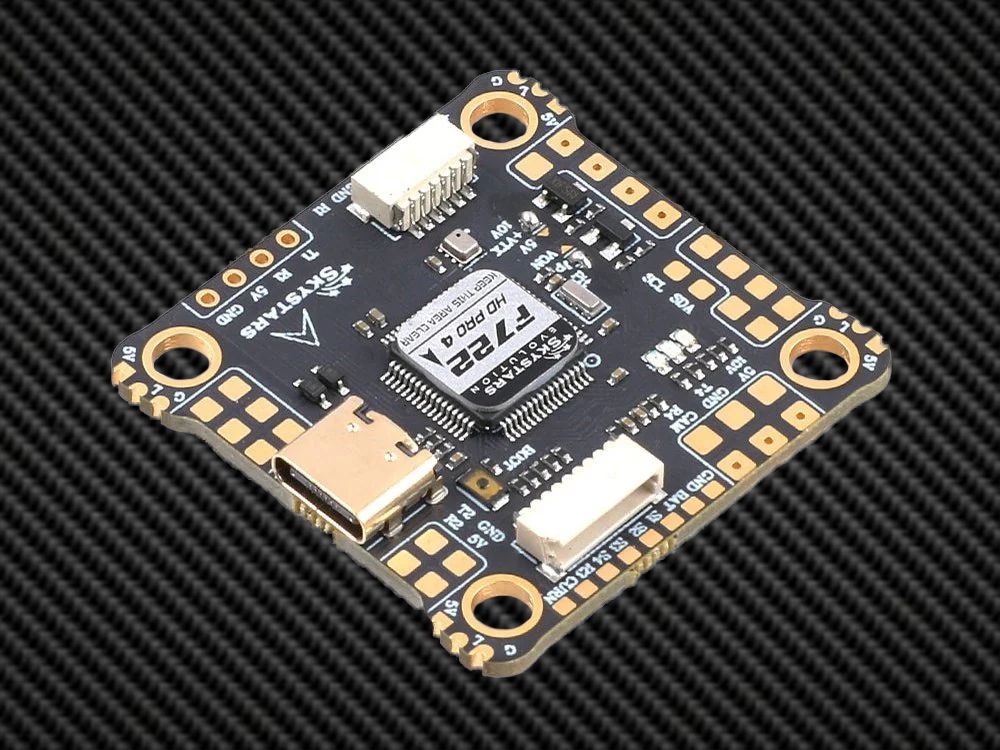

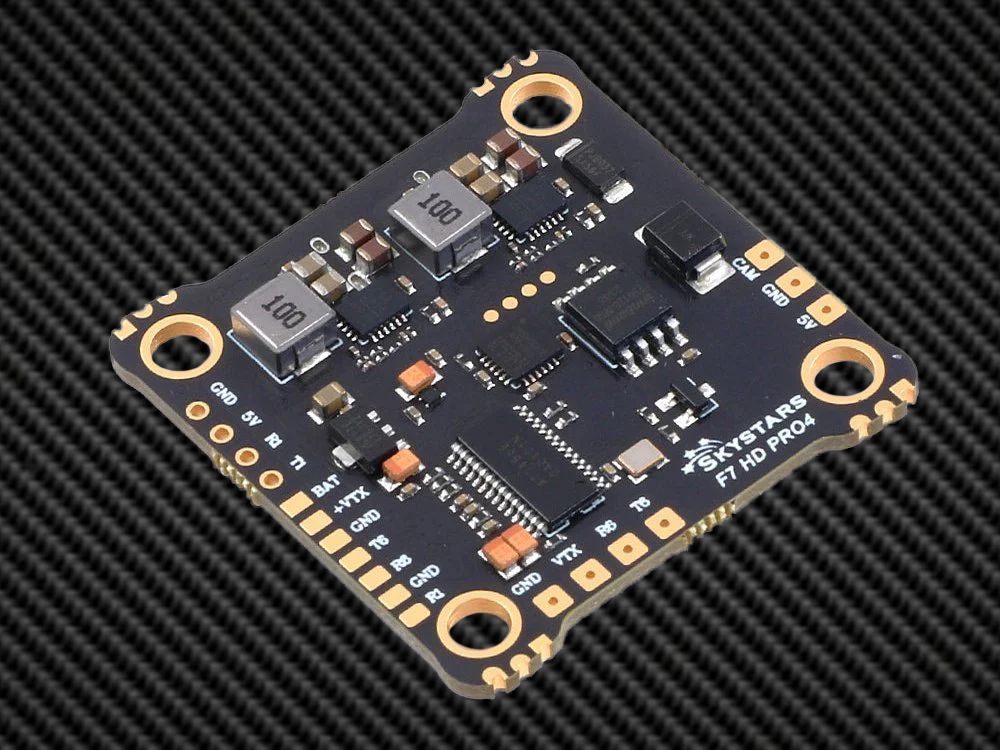

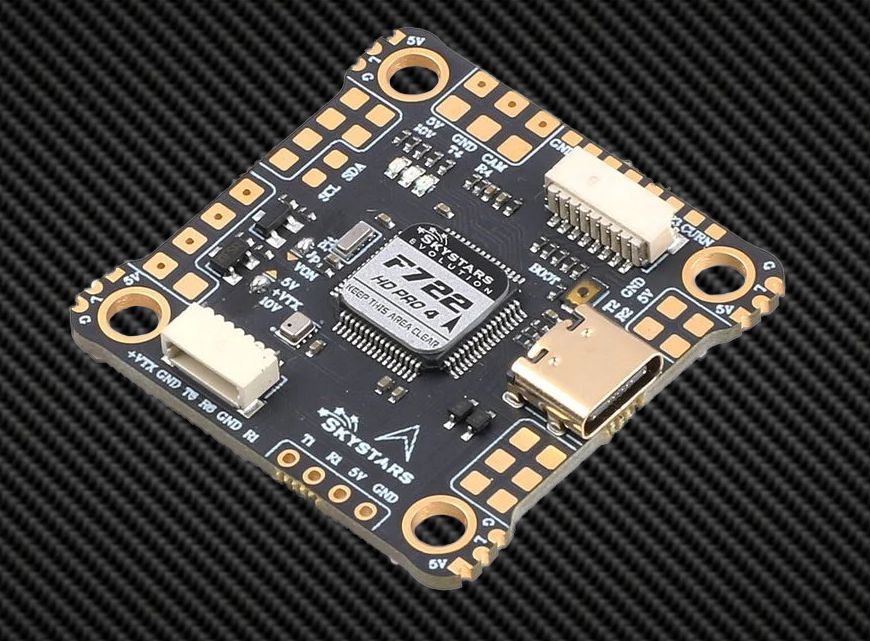

The Skystars F722 HD Pro4 is an advanced flight controller featuring an STM32F722RGT6 F7 processor. The design philosophy prioritizes ease of use, durability, and high performance for FPV drone enthusiasts and professionals alike.

Performance and Reliability

• EMI Reduction: Isolated gyroscope power supply minimizes interference
• Dual Quality Control: Two-stage checking process to ensure reliability
• Versatile Compatibility: Ready for I2C devices and INAV firmware

Soldering and Connectivity

• Generous Solder Pads: facilitating easier soldering
• Optimal Pad Spacing: Reduces risk of solder bridges while enhancing solderability
• Top-mounted ESC Connector: Simplifies repairs and maintenance

Layout and Compatibility

• Intelligent Pad Arrangement: Enables clean, uniform wire routing for camera, VTX, and RX connections
• DJI O3/04 Support: Top-side connector for seamless integration
• VTX Control: Supports ON/OFF pit switch functionality

Protection and Power

• TVS Diode: Provides reverse polarity protection and voltage spike suppression
• Powerful BEC: 3A capacity to reliably power all onboard electronics

This fourth-generation controller incorporates key technologies:

• Gyroscope: MPU6000 sensor for precise flight dynamics
• Memory: 16MB blackbox for comprehensive flight data logging
• Power Regulation: Dual-stage Built-in BECs (5V/3A and 10V/3A)

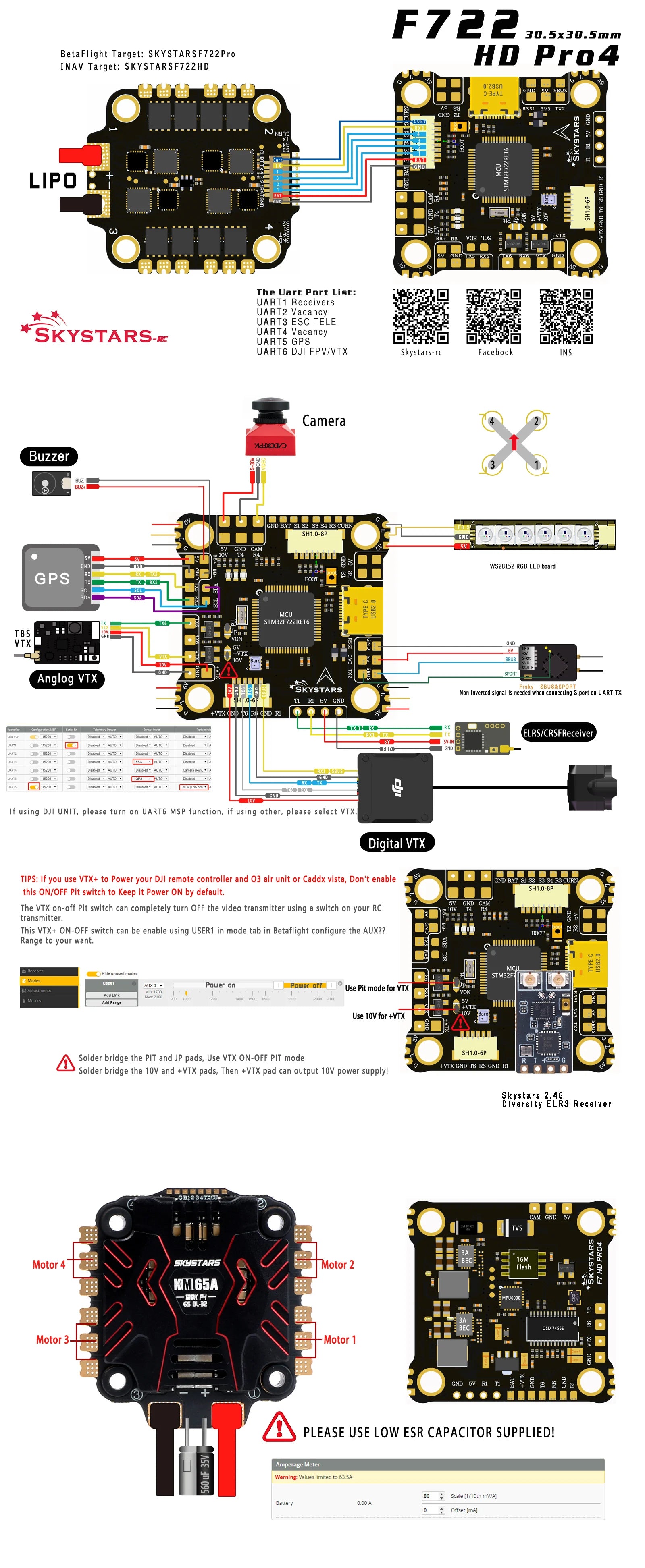

• Video Compatibility: Dedicated connector for DJI Vista, 03 Air Unit, 04 Air Unit Pro and analog FPV video transmission
• LED Support: Four independent LED pads in the unit's corners, supporting WS2812 programmable lighting
• Altitude Measurement: Integrated barometer for precise height tracking

The flight controller is designed to provide robust performance for FPV drone enthusiasts, offering comprehensive features in a compact 30.5 x30.5mm form factor.

Compatible/direct integration with our Skystars AM60 AM_32 60A 32Bit 3-6S 30.5mm 4in1 ESC

SPECIFICATIONS:

• Voltage Input: 3-6S (11.1V~22.2V)
• Processor: STM32F722RGT6 216MHz
• IMU: MPU6000
• Uarts: 6
• BEC: 5V @ 3A, 10V @ 3A
• DJI Connector: DJI FPV Video Transmitter
• Barometer: Yes

• LED: 4 independent LED pads, support WS2812 programming
• OSD: Betaflight OSD & DJI MSP OSD (UART6)
• Firmware: SKYSTARS F7HD
• USB connection: USB-C
• Buzzer Pad: YES
• Black Box: 16MB
• CURR Pad: YES
• RSSI Pad: YES
• Mounting Holes: 30.5mm x 30.5mm / M3
• Weight: 6.8g
