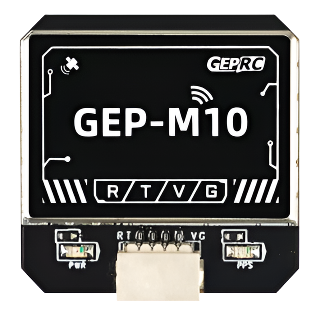

GEP-M10 Series GPS

Summary:

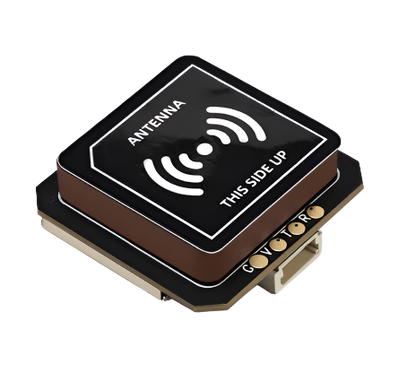

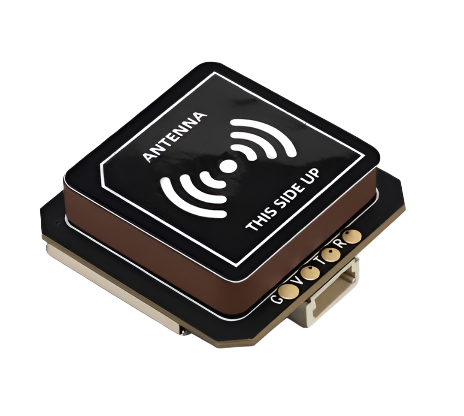

The GEP-M10 series is versatile, suitable for various applications including FPV quadcopters, multi-rotors, fixed-wing aircraft, and other model products. The GEP-M10 series GPS module employs u-blox's M10 chip, enabling joint positioning with GPS, BDS, Galileo, QZSS, and SBAS systems, tracking up to 32 satellites simultaneously. It features ceramic antennas in 12x12mm and 18x18mm sizes for enhanced signal reception. The module's built-in Flash chip and Farad capacitor allow for quick hot starts and configuration parameter storage.

Specifications:

• GPS chip：u-blox M10050
• Input voltage：3.3V-5V
• Receiving frequency：GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode：GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel：72ch
• Navigation satellites：Up to 32 pieces

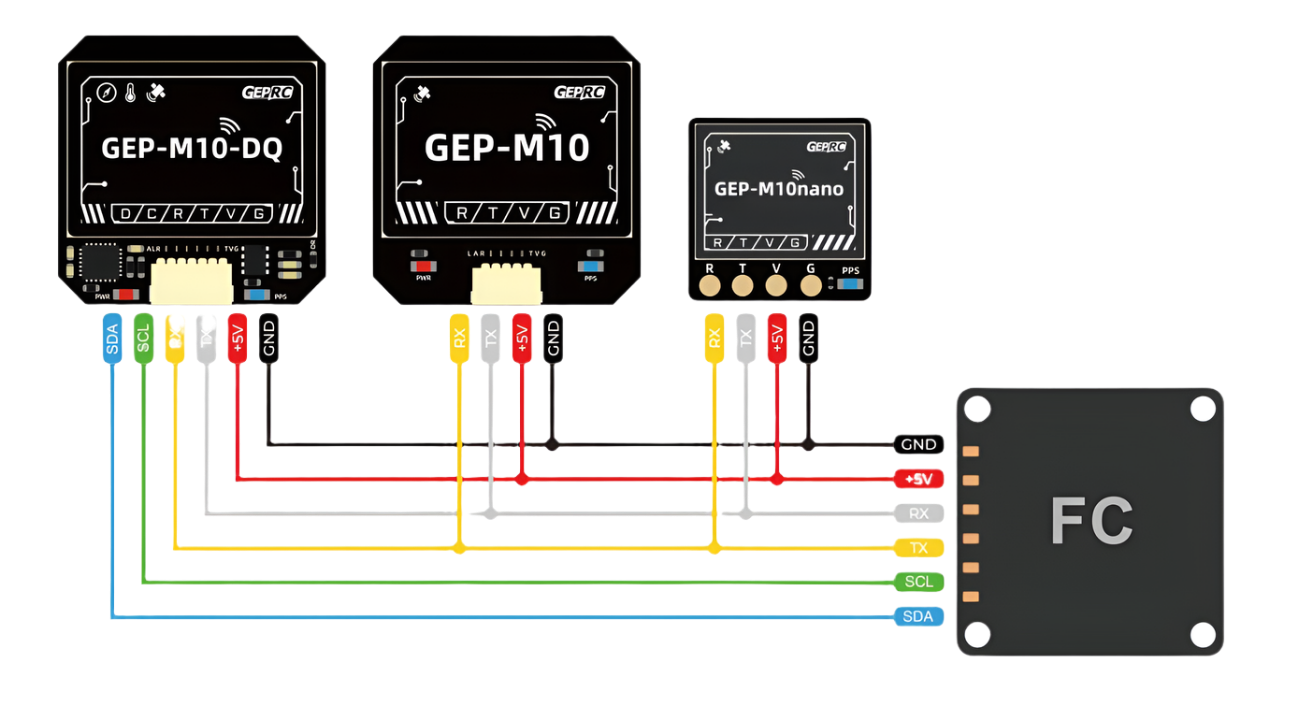

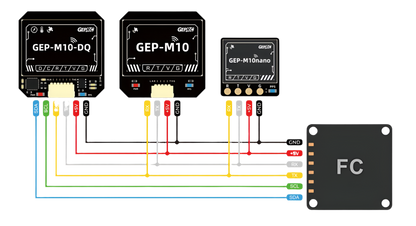

• Output protocol：UART(ublox),I2C（Baro,Mag）
• Baud rate：115200bps
• Output Frequency：10Hz
• Speed Accuracy：0.05 m/s
• Horizontal positioning accuracy：2D ACC1.5m(Weather)
• Timing accuracy：30 ns
• Receiver sensitivity：Trace-162dBm，Capture-160dBm
• Dynamic characteristics：Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration：4G
• Mag：QMC5883L,IST8310
• Baro：DPS310
• Size：15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)

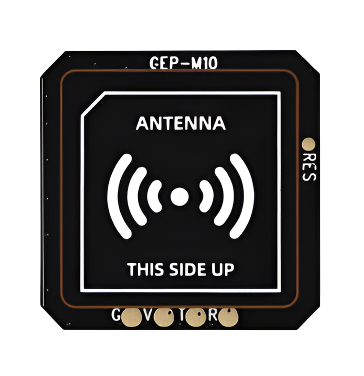

• Antenna size：12x12mm(GEP-M10nano),18x18mm(GEP-M10)
• Weight：4.1g(GEP-M10nano),7.8g(GEP-M10)

Features:

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 12x12mm or 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer + barometer, more collocation scheme

Includes:

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
