Summary
GEPRC Momoda LHCP 5.8G antennas are optimized for FPV quads. The antennas have excellent gain performance in a compact form factor. Each antenna is subjected to thorough testing before leaving the factory to ensure its given performance.
Features
- Very compact and light-weight design, high quality ABS case for overall protection and sleek appearance.
- Manufactured and tested to the highest standards
- Ease of use/installation.
Specifications
- Frequency range: 5600-5950MHz
- Polarization: LHCP
- Gain: 2.0 dBi
- SWR: ≤1.5
- Input Impedance: 50Ω
- Radiation Efficiency: 98%
- Connector: RP-SMA
- Weight: 10g
- Height: 120mm
- Radome material: ABS
- Radome color: Black
Includes

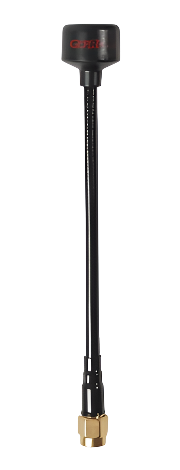

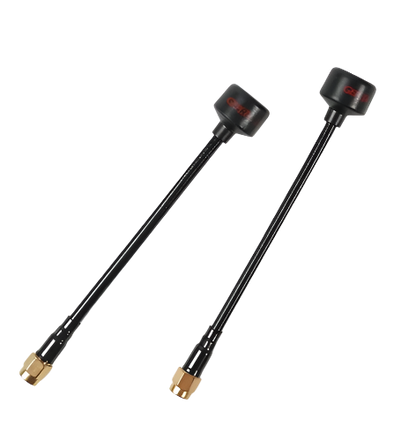

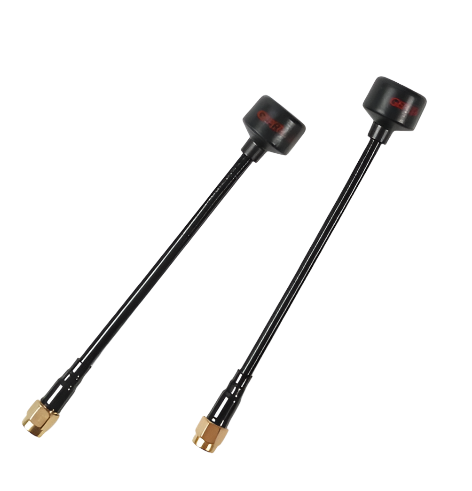

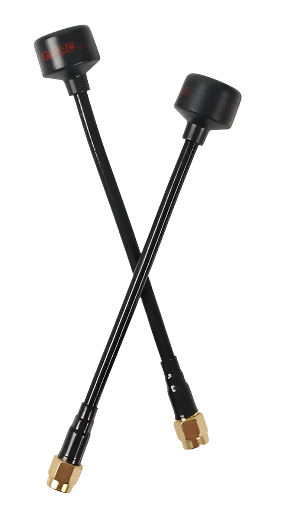

(SET) = 2 x GEPRC Momoda 5.8G RP-SMA 120mm LHCP Antenna
