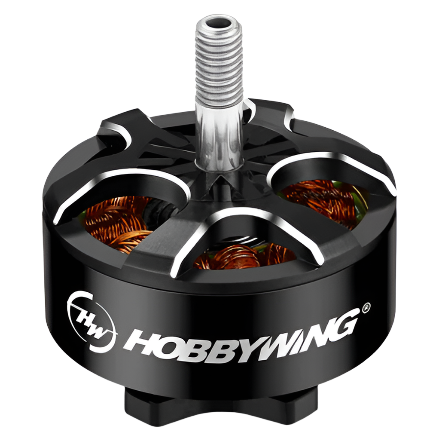

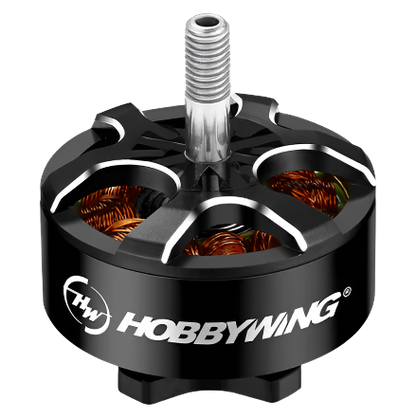

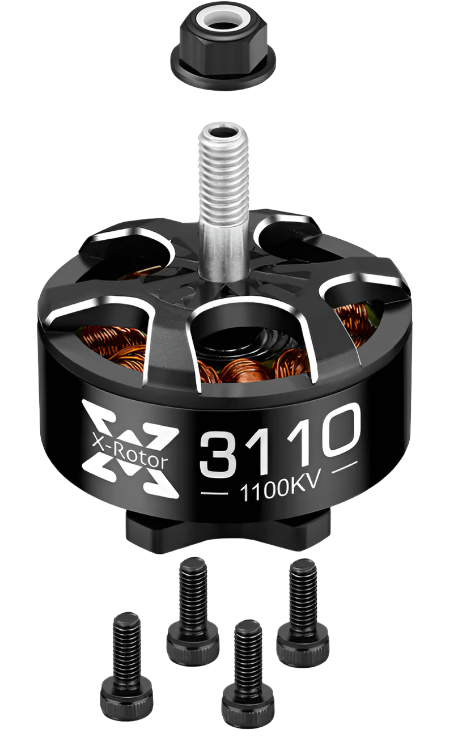

Hobbywing XRotor 3110 Motor

Hobbywing XRotor 3110 Motor:

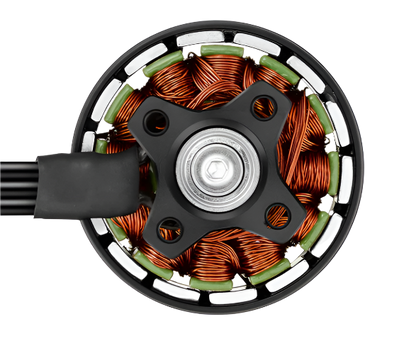

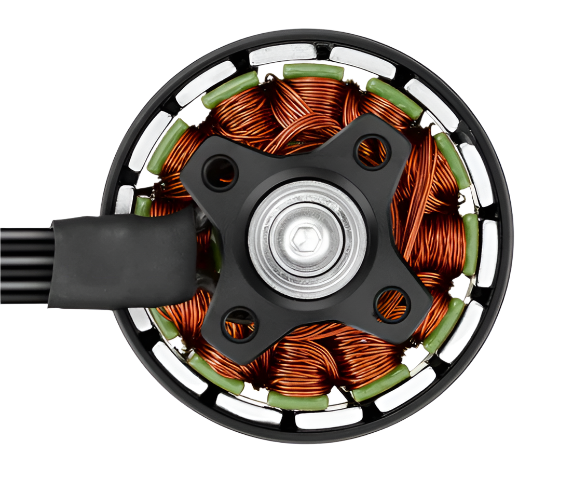

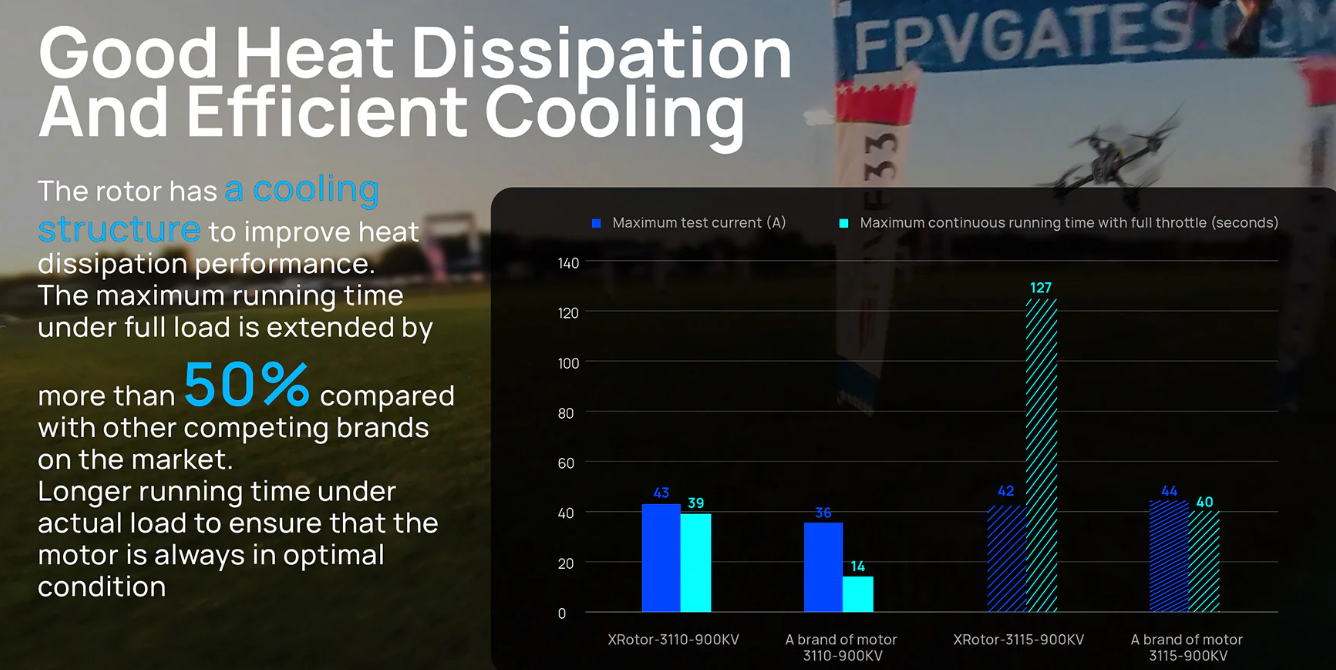

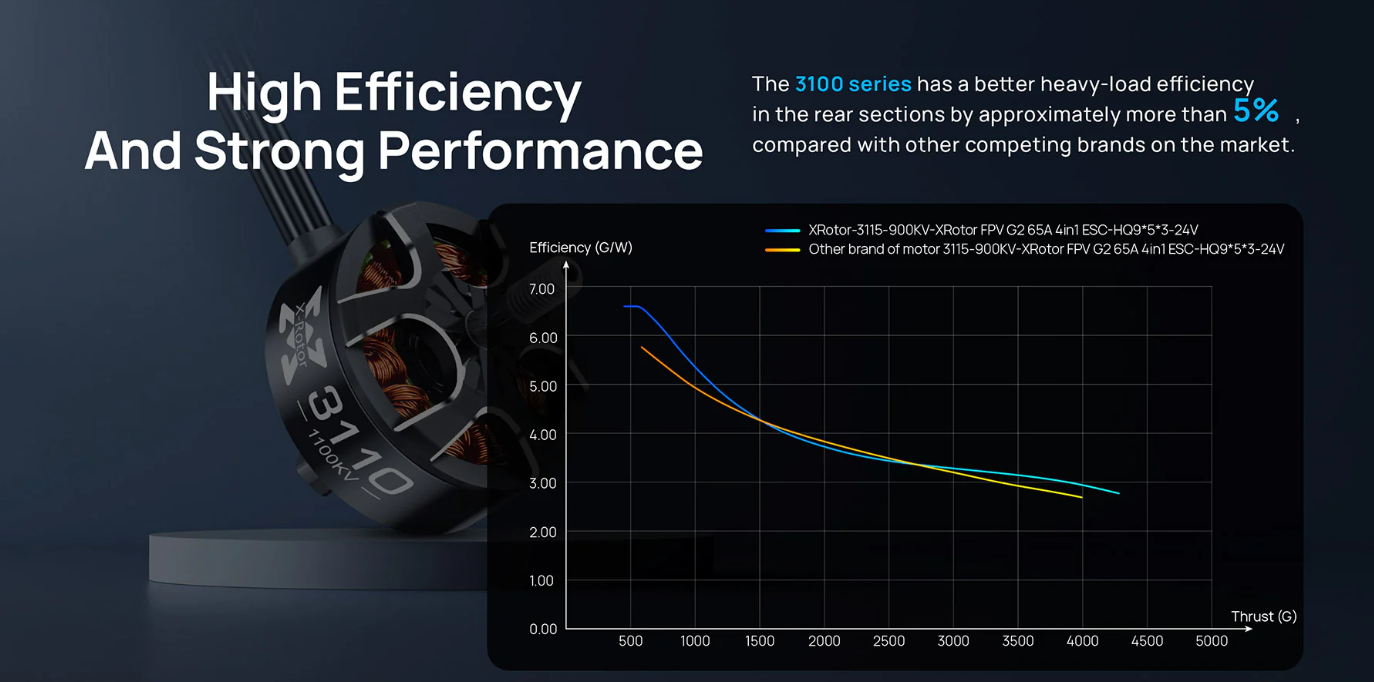

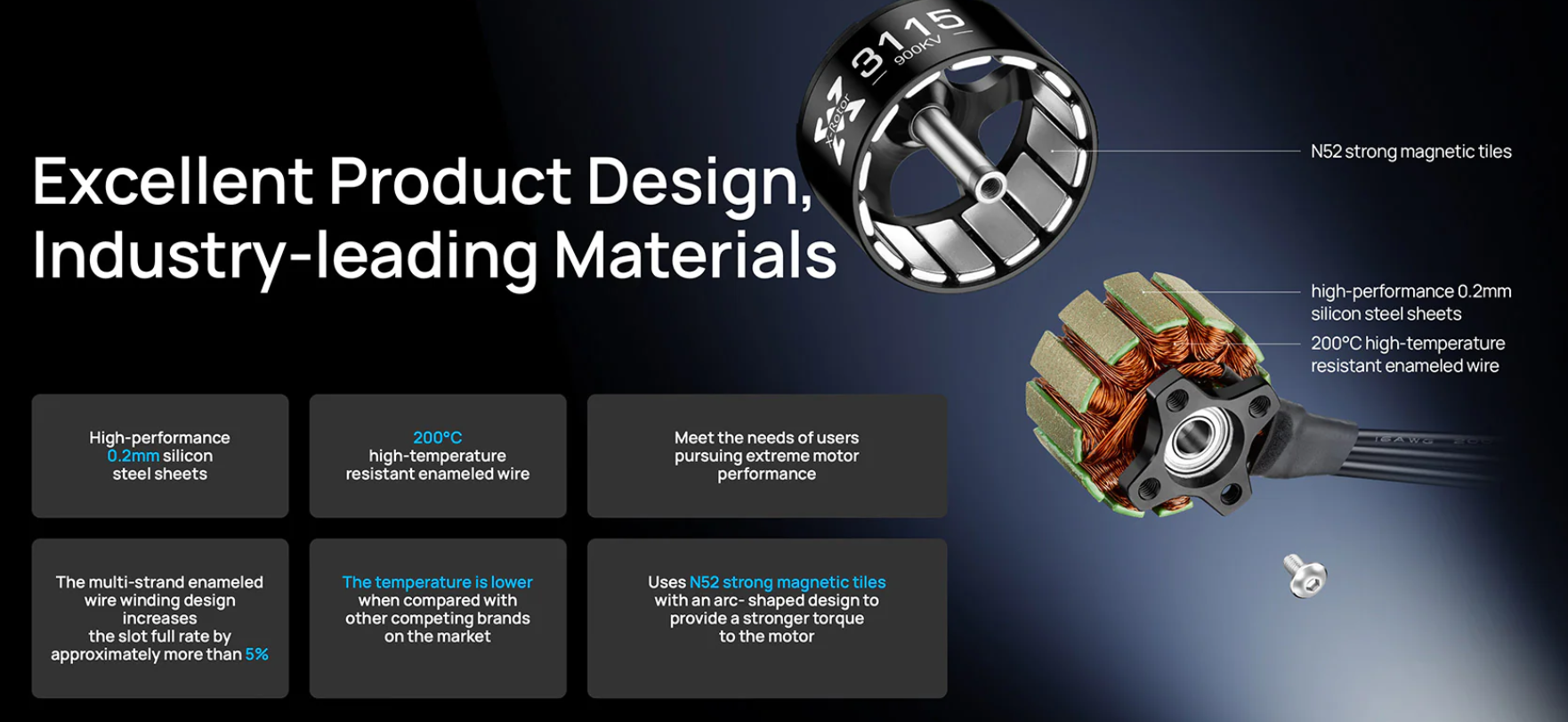

The XRotor 3110 delivers extremely high efficiency and robust power output, excelling under heavy loads and ensuring long-lasting, reliable operation even in demanding conditions. Featuring an advanced cooling structure with a large hollow design at both ends, the motor achieves significantly improved heat dissipation—up to 20% better thermal efficiency compared to similar models. This allows for longer sustained operation at full load, with runtime extended by over 40–50% versus other competing brands. The motor uses high-quality 0.2mm silicon steel sheets and 200°C heat-resistant enamelled wire, reducing iron losses and enhancing durability.

The multi-strand winding design increases the slot fill rate, further boosting efficiency and lowering operating temperatures. The use of N52H strong magnetic arc-shaped tiles provides greater torque, making the motor suitable for powerful thrust applications and rapid response in FPV racing or heavy-lift drones.

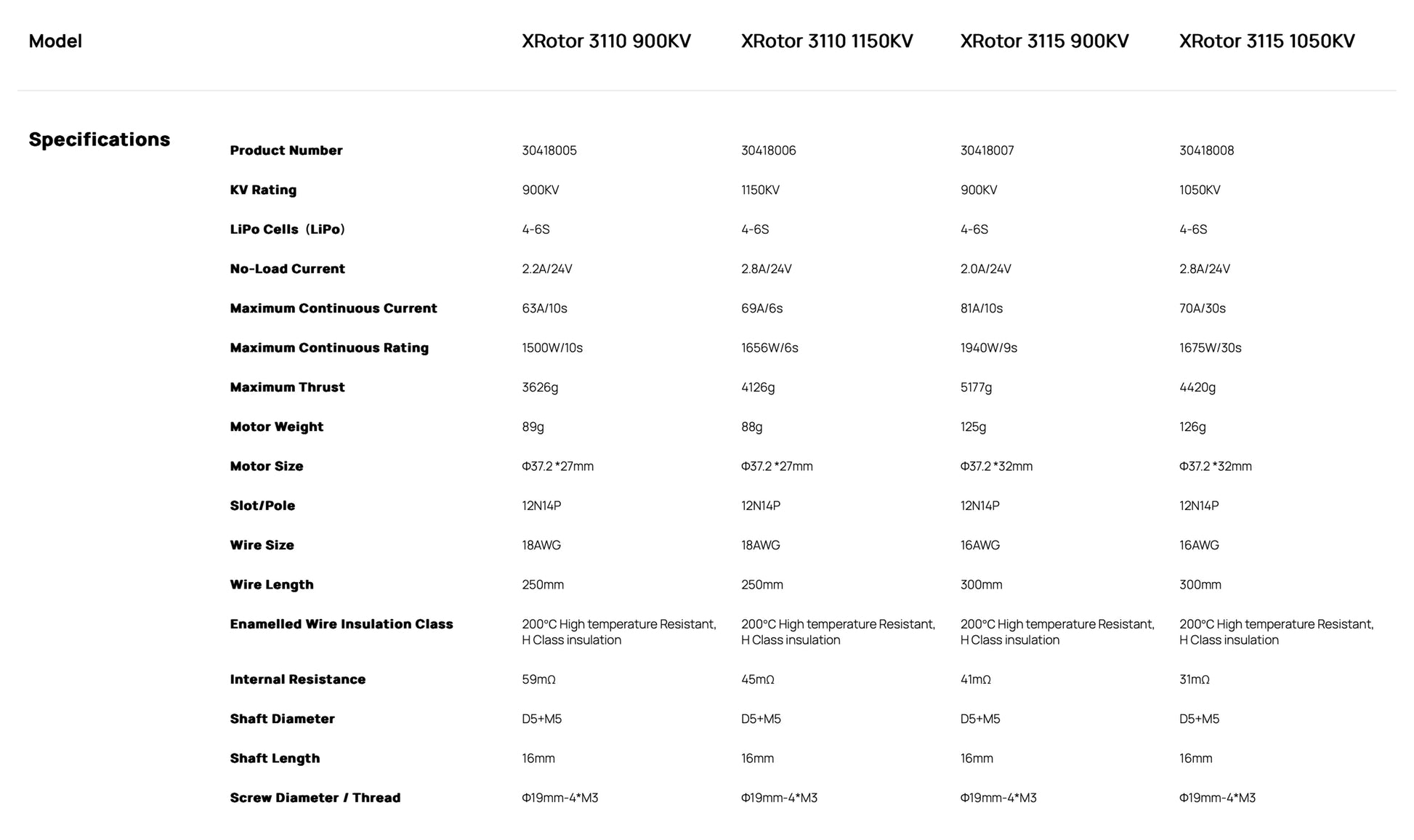

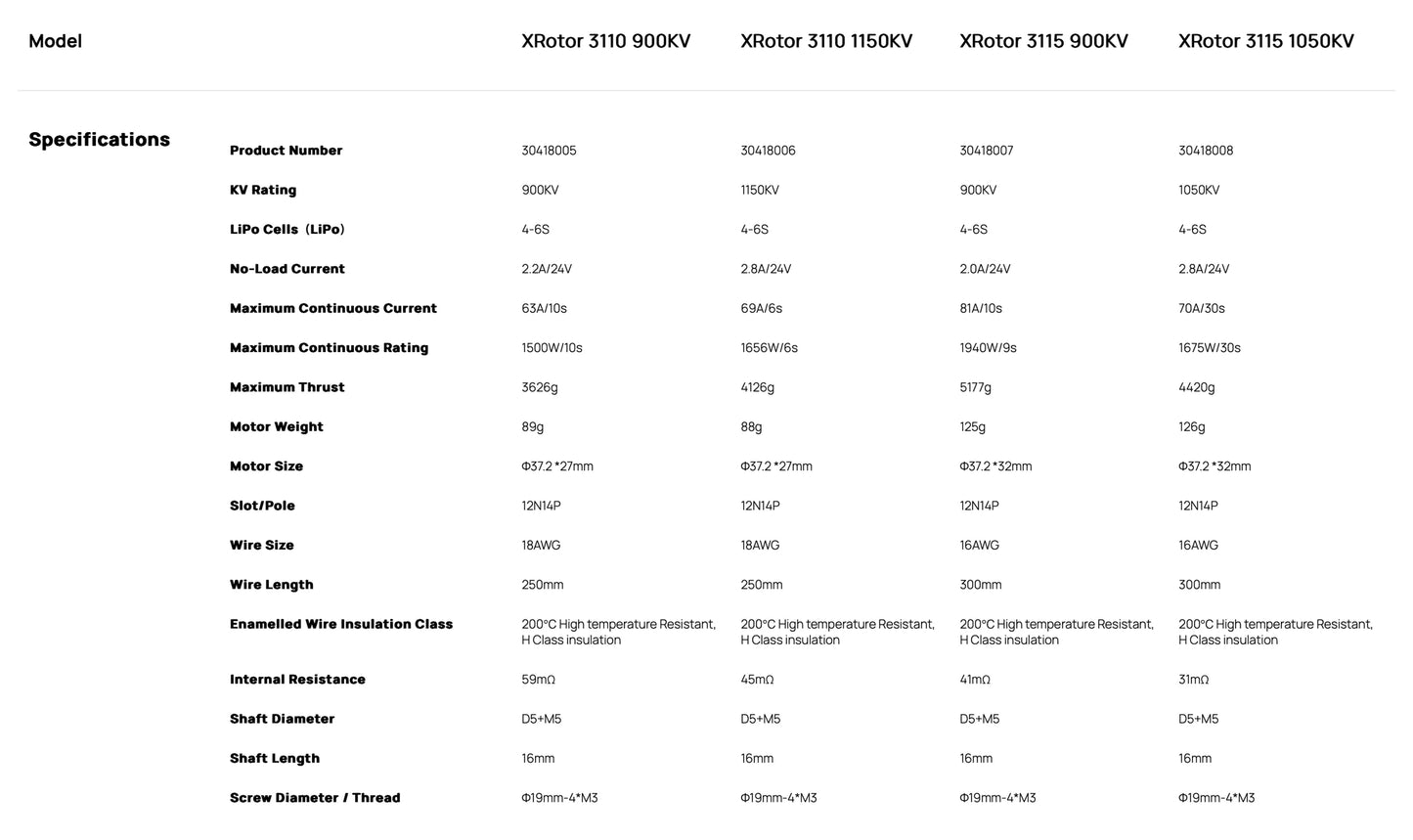

XRotor 1150KV:

• Max continuous current: 69A/6s
• Max continuous rating: 1656W/6s
• Max thrust: 4126g
• Weight: 88g
• Size: 37.2mm (Dia.) x 27mm (Height)
• Shaft Dia: 5mm
• Compatible with 4–6S LiPo / Li-ion batteries
• Recommended Props: 8–9 inch propellers
